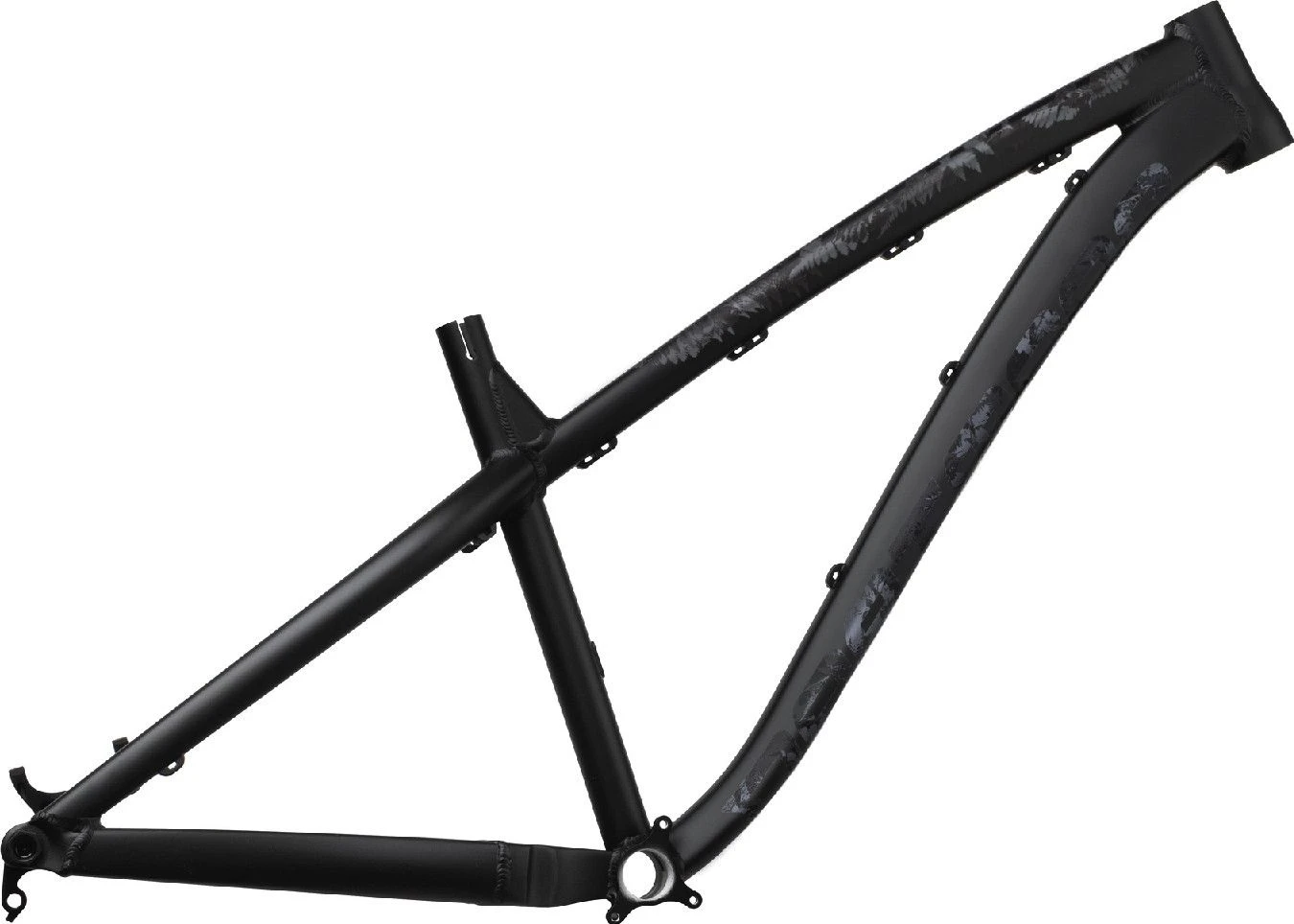

Dartmoor Hornet 27.5” MTB Frame Black / Grey 2021

Original price was: $329.99.Current price is: $95.99.

SKU: YWXSD 1571614 Categories: Frames, Frames, Suspensions, Hardtail Tag: Dartmoor

Service that stands out, online and always timely.
Hassle-Free Payments
Buy with confidence, backed by quality.
Safe Payments, Secure Personal Information

The 27.5 “Dartmoor Hornet MTB frame is one of the most aggressive and versatile models by the Polish brand. It is comfortable in a wide range of mountain bike disciplines, from Freeride to All Mountain via Enduro, this rigid frame benefits from a very solid aluminum construction, and can be combined with a 140 to 180 mm fork travel!
The Hornet frame is distinguished by its elongated structure at the level of the front triangle, which offers the pilot greater control and better stability at high speed. Proof of its superior strength, this frame receives a hydrofom top tube identical to the DH models of the brand, Roots and Wish. And for even more stability, its geometry even allows the fitting of wide tires, up to 2.8 “in section!

Details:

Wheel Size	27.5 x 2.8 “
Pedal box	BSC 73 mm
D beat Pr conis de la Fourche	140/180 mm
Diameter of the Rod	30.9mm
Diameter of the Saddle Clamp	34.9mm
Diameter of the Tailor’s Necklace	34.9mm
Max Disc Diameter	203 mm
Headset Diameter	Conical 1 “1/8 – 1,5” for JDD IS42-IS52
Center distance of the rear wheel	12 x 148 mm
Brake Attachment	Postmount
Attaching the Guide Chain	ISCG-05
Matter	Aluminum 7005-T6
Weight	2.35 kg (S), 2.4 kg (M), 2.45 kg (L).

Geometries:

Frame Size	S	M	L
Seat tube	380 mm	410 mm	440 mm
Upper Tube	585 mm	603 mm	626 mm
Case height	30 mm	30 mm	30 mm
Basics	425 mm	425 mm	425 mm
Direction socket	120 mm	120 mm	120 mm
Steering angle	65	65	65
Seat tube angle	73	73	73
Wheelbase	1151 mm	1176 mm	1206 mm

MORE INFORMATION

Rear axle	Boost 12 x 148 mm
Bottom bracket mount	BSC / BSA
Gender	Not Specified
Frame Caliper Mount	Post Mount (PM)
Front derailleur mount	ISCG-05
Seat Clamp	34.9
Diameter (mm)	30.9
