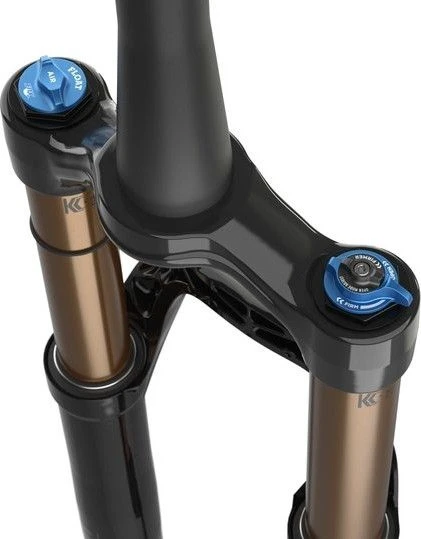

Fox Racing Shox 34 Float Factory 27.5 '' Fork | FIT4 3Pos-Adj | Boost 15x110mm | Offset 44 | Black 2023

Fox Racing Shox 34 Float Factory 27.5 '' Fork | FIT4 3Pos-Adj | Boost 15x110mm | Offset 44 | Black 2023 - Image 2

Fox Racing Shox 34 Float Factory 27.5 ” Fork | FIT4 3Pos-Adj | Boost 15x110mm | Offset 44 | Black 2023

Original price was: $333.00.Current price is: $96.99.

SKU: YWXSD 2103344 Categories: Forks, Frames, Frames, Suspensions Tag: Fox Racing Shox

Service that stands out, online and always timely.
Hassle-Free Payments
Buy with confidence, backed by quality.
Safe Payments, Secure Personal Information

Adjust a fork

Maintain a fork

Here is the Fox 34 is the ultimate companion for pure driving pleasure on simple trails, whether uphill or downhill. The proven EVOL air spring works in the rugged chassis, with the shock options now you have the choice: FIT4 with lockout or FIT GRIP2 with adjustable high and low speed compression and rebound.

Details:

Factory series models with authentic Kashima coat
Size: 27.5 ”
1”1 / 8-1.5 ” taper pivot
Axle: Boost 15×110 mm
Hydraulic: Cartridge Fit4
Spring: FLOAT EVOL
Settings: 3 positions open / platform / closed.
Plungers: 34 mm
Weight: 1770 g

References :

910-20-870 / 2022 34 K FLOAT 27.5in FS 140 FIT4 3Pos-Adj Shiny Blk Orange / Gloss Blk Logo 15QRx110 1.5 T 44? Mm Rake AM

Fit4 Cartridge:

Being the fourth generation, our patented FIT4 (FOX Isolated Technology) sealed cartridge system allows three instantaneous compression damping positions (open, medium and firm) to adapt to different trail conditions. The Factory Series forks additionally feature 22 clicks of low-speed compression adjustment in open mode to allow mountain bikers to fine-tune damping.

The FIT4 cartridge has been redesigned taking inspiration from the HSC / LSC model, which has been acclaimed many times, in order to improve damping whatever the fork. This year, the FIT4 shock comes with a new tuning that provides better sensitivity while retaining support.

Float damping:

The FLOAT pneumatic shock absorber developed for the 32, 34 and 40 forks is lighter and reduces the force required to release. It offers excellent sensitivity on small bumps regardless of the rider and the pressure setting.

Similar to our FLOAT shocks, the new FLOAT system features negative and positive chambers that balance automatically. This provides proper pressure for every mountain biker. The progressiveness of the damping curve is adjustable by means of spacers for the air volume so that mountain bikers can precisely adjust the behavior of the air shock.
