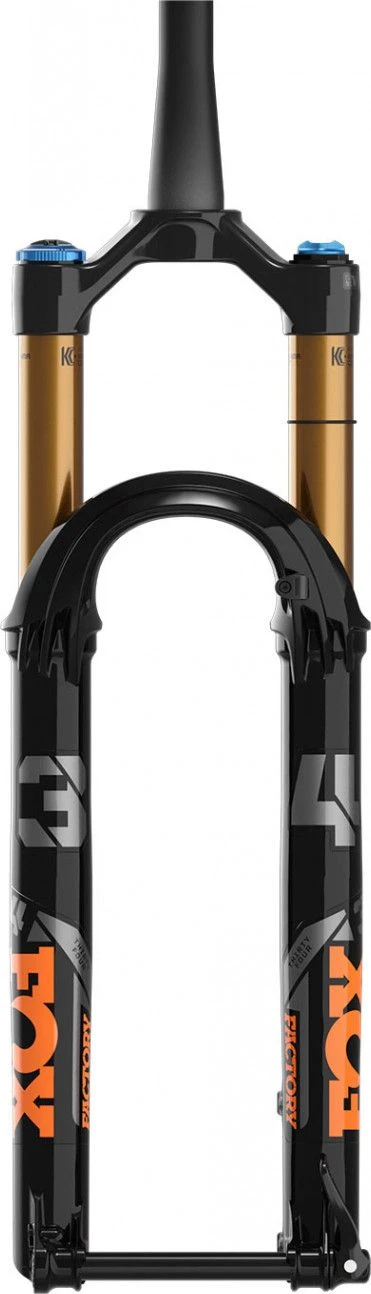

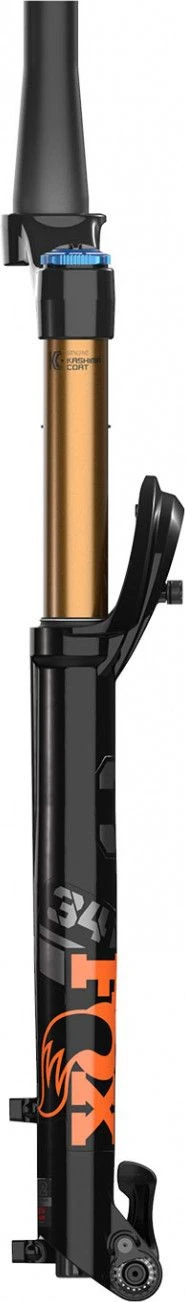

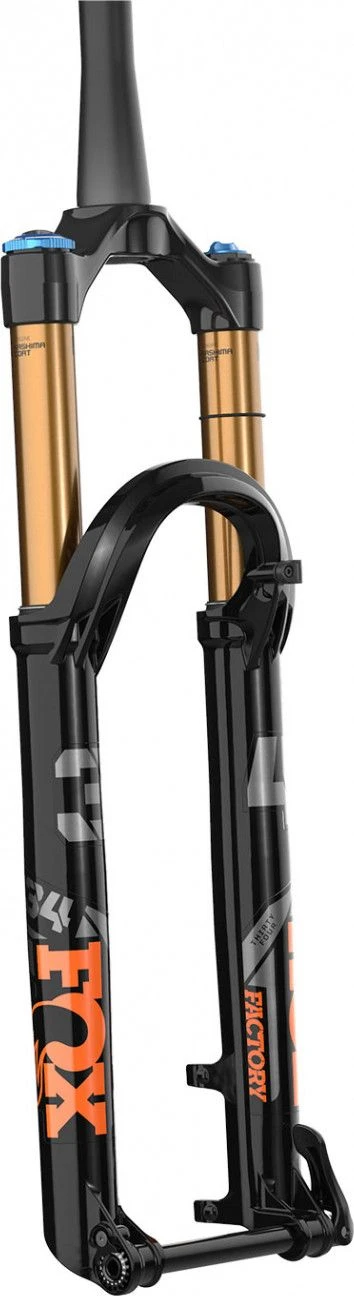

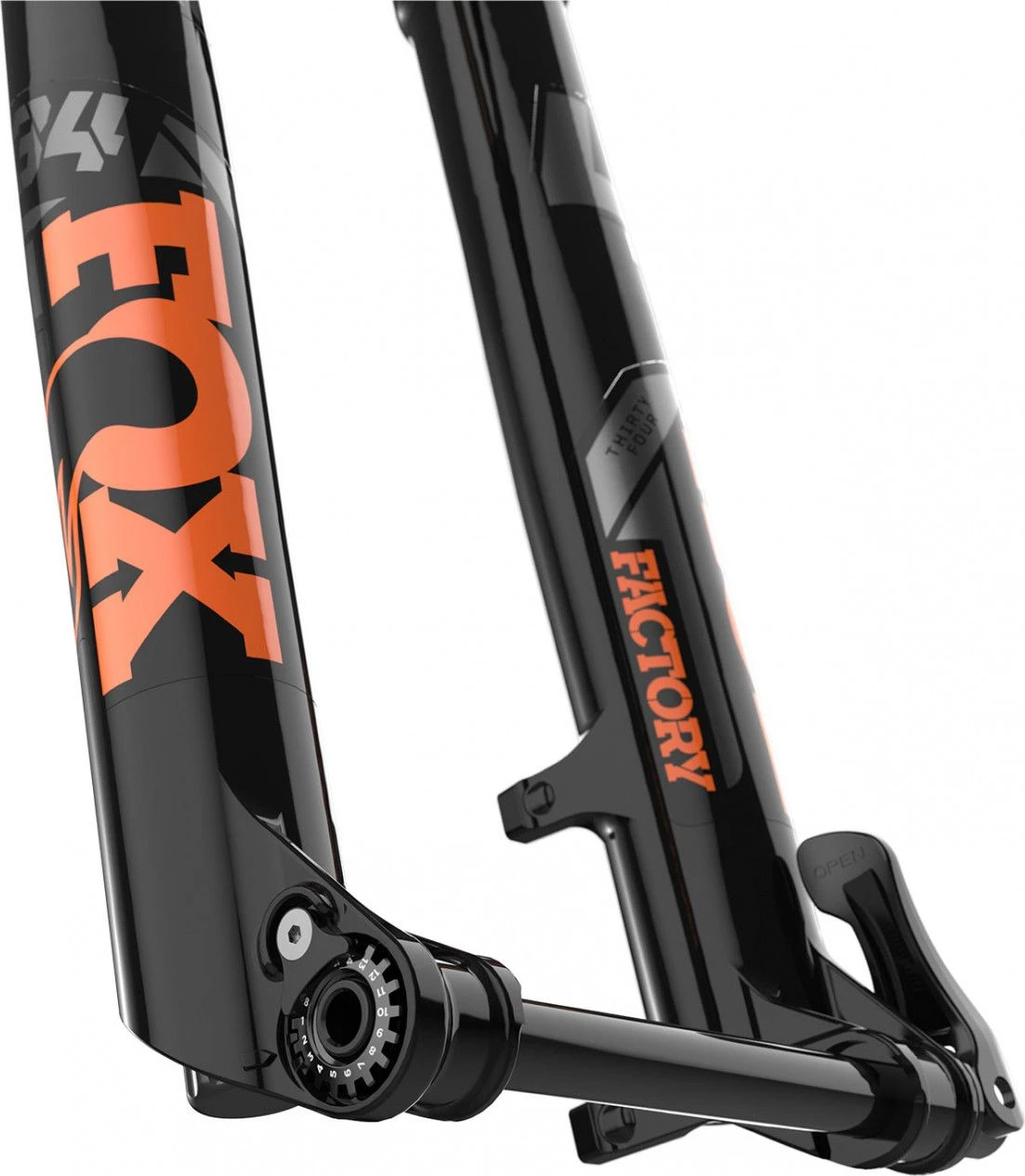

Fox Racing Shox 34 Float Factory 29 ” Fork | Grip 2 | Boost 15×110 | 51mm Offset | Black 2023
Original price was: $394.00.$97.99Current price is: $97.99.
- Service that stands out, online and always timely.
- Hassle-Free Payments
- Buy with confidence, backed by quality.
- Safe Payments, Secure Personal Information

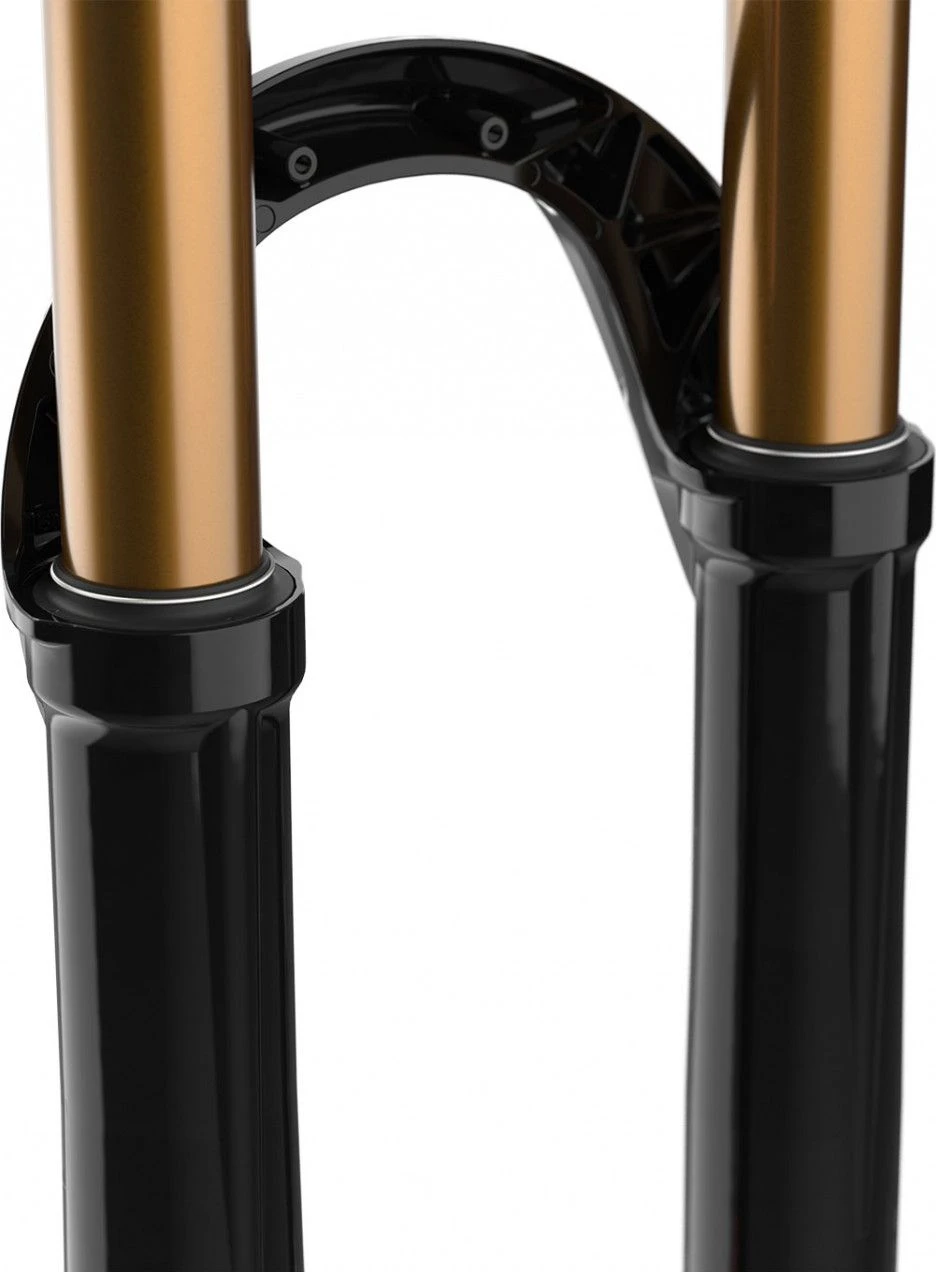

Massive and announced very rigid, the arch offers a clearance that allows the installation of 29×2.60 section tires on the 34. At the rear of the fork, two channels follow the legs.
Small explanation: it is a logical phenomenon, in empty spaces, the air pressure increases, inside the fork, when the fork takes the travel. This uncontrolled overpressure can sometimes prevent the rider from using the entire race. Fox has equipped its new 34 with additional channels placed in the legs, these prevent overpressure build-up. This technology is also available on Enduro 38 & 36 forks.
This new construction also promotes permanent lubrication of seals and guide rings. The operation will thus be, at least in theory, smoother and it will be easier to use all the travel of the fork. The Evol air spring has a negative spring readjusted to improve the handling of the fork at mid-travel. In 2022, the forks are delivered with a shim that allows this volume to be adjusted according to your wishes, more linearity or more progressiveness.
Details:
- 100% new chassis, optimized weight / stiffness ratio.
- Channels preventing overpressure build-up.
- Arch clearance (29×2.60) 58mm
- Size: 29 ”
- 1”1 / 8-1.5 ” conical pivot
- Axle: Boost 15×110 mm

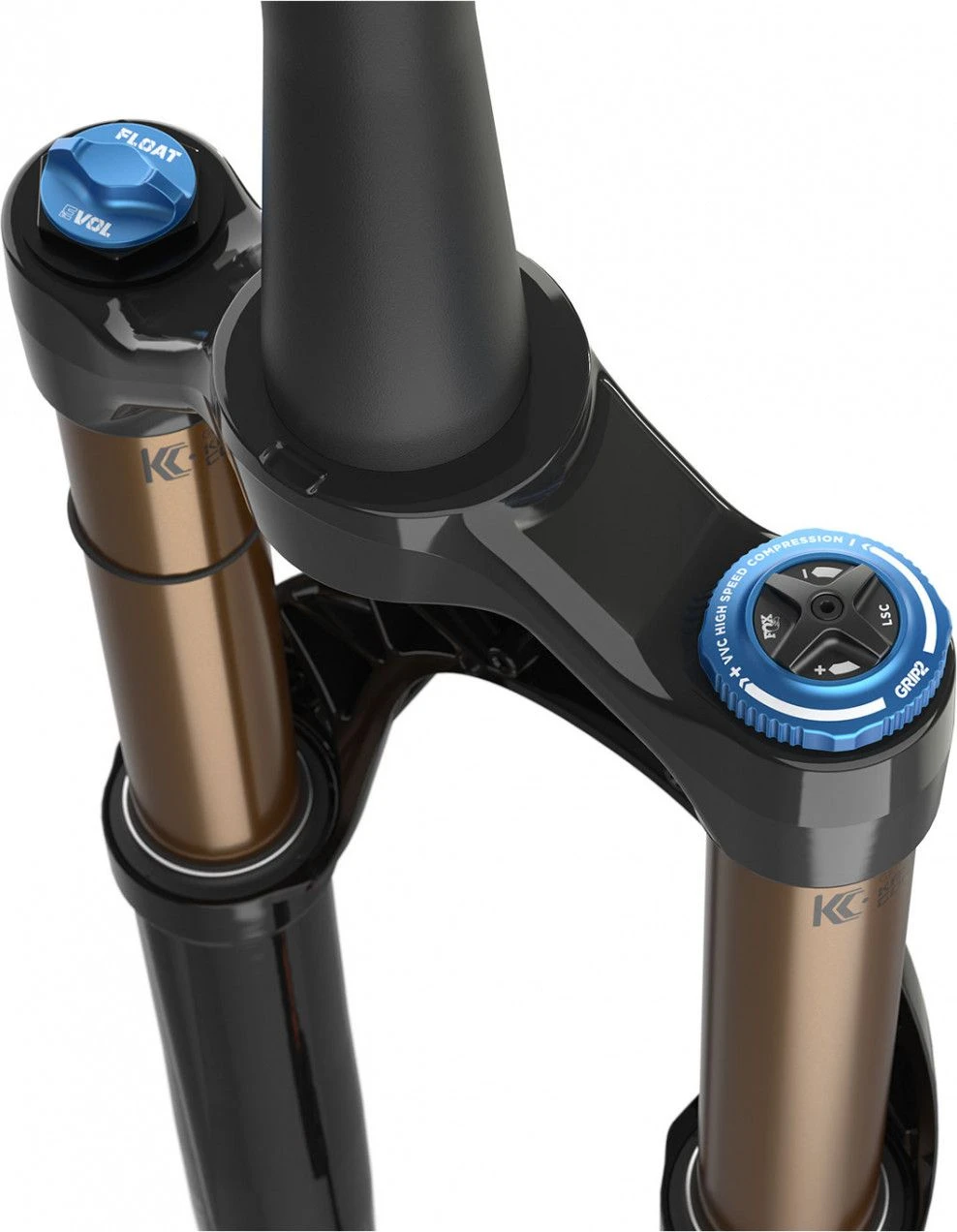

- Hydraulic: Cartridge Grip 2
- Evol air chamber
- Spring: Air
- Offset: 51 mm
- Plungers: 34 mm
- Weight: 1698g
- High-speed compression (w / VVC) 8 clicks
- Low-speed compression 16 clicks
- High-speed rebound (w / VVC) 8 clicks
- Low-speed rebound 16 clicks
- Direction star.
- QR axis.
- Air volume adjustment wedge.
- Hose guide.
- 910-21-009 / 34 Float 29 “Factory 130 Grip 2 Hi / Low Comp / Reb gloss black 15QRx110 BOOST conical offset 51mm 2022
- 910-21-004 / 34 Float 29 “Factory 140 Grip 2 Hi / Low Comp / Reb shiny black 15QRx110 BOOST conical offset 51mm 2022
The FLOAT pneumatic shock absorber developed for the 32, 34 and 40 forks is lighter and reduces the force required to release. It offers excellent sensitivity on small bumps regardless of the rider and the pressure setting.
Similar to our FLOAT shocks, the new FLOAT system features negative and positive chambers that balance automatically. This provides proper pressure for every mountain biker. The progressiveness of the damping curve is adjustable by means of spacers for the air volume so that mountain bikers can precisely adjust the behavior of the air shock.
MORE INFORMATION
| Steerer | Tapered 1”1/8-1.5” |
| Front axle | Boost 15 x 110 mm |
| Lock | On the crown |
| Width | 34mm |
| Fork Caliper Mount | Post Mount (PM) |
| Offset (mm) | 51 |
| Size | 130, 140 |
|---|
