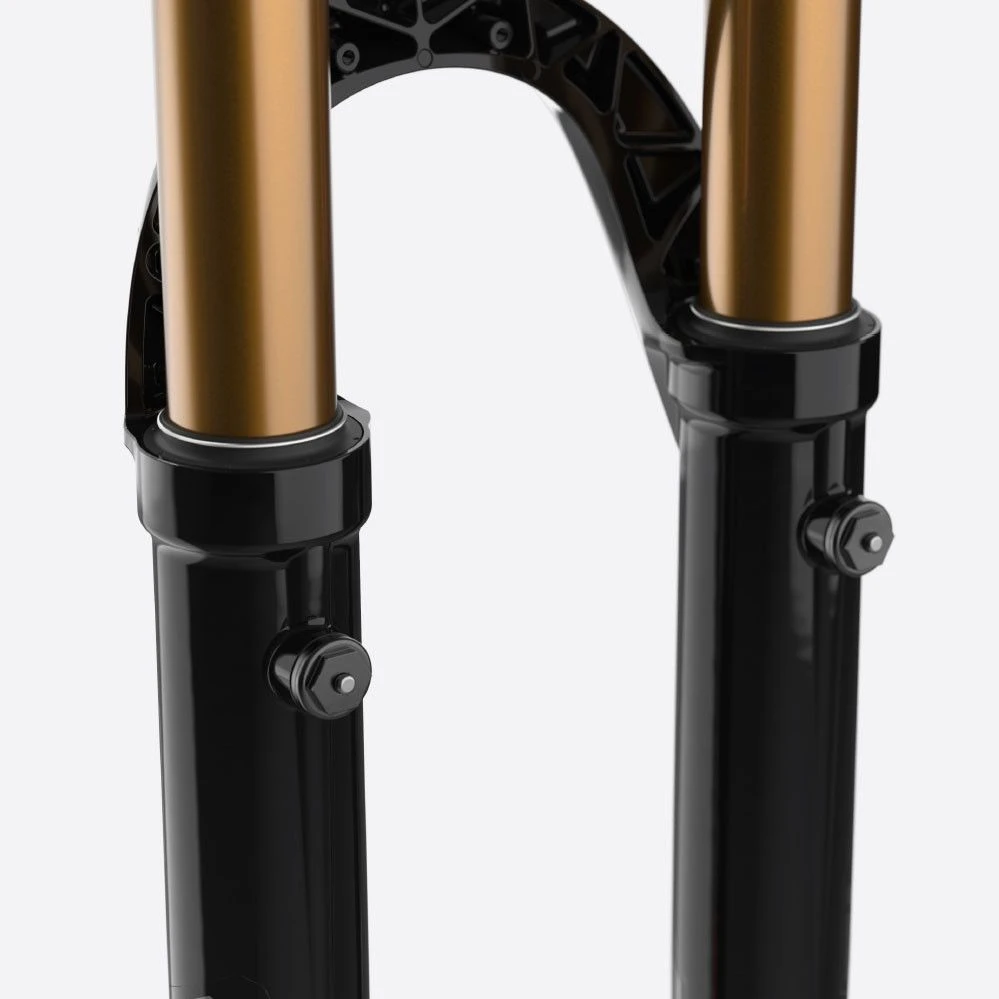

First of all, the sleeves have many innovations: bleeders which make it possible to balance the internal pressures of the fork with the external pressures, air / oil circulation ramps allowing them, a better management of the air pressures but also optimized lubrication of the upper seals, a new arch offering even more rigidity, and finally a floating wheel axle system which ensures perfect alignment between the fork and the hub.
Spring side, the Fox 36 uses the Float air system dear to the brand, but has some improvements to increase progressiveness and reduce friction

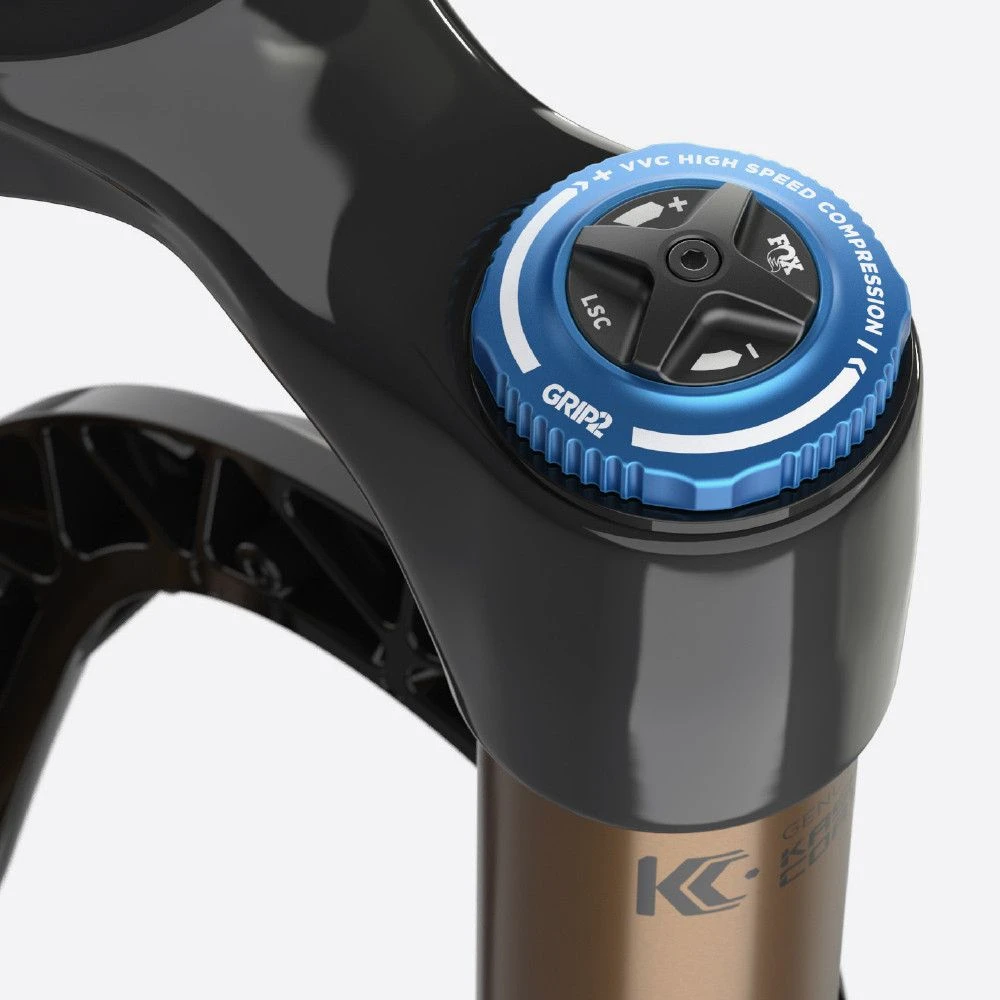

On the hydraulic side, the Fox 36 benefits from the new GRIP 2 cartridge whose VVC technology, for Variable Valve Control, until now reserved for high-speed rebound adjustment, now extends to high-speed compression adjustment, further improving the operation of the the most famous cartridge of the brand.
Details:
- Size: 29 ”
- 1”1 / 8-1.5 ” conical pivot
- Axle: Boost 15×110 mm
- Hydraulic: Cartridge Grip 2 H / L.
- Spring: Air Float
- Offset: 51 mm
- Settings: preload, high and low speed rebound.
- Plungers: 36 mm
- Direction star
References :
- 910-20-235 / 36 Float 29 “Factory 160 Grip 2 Hi / Low Comp / Reb shiny black 15QRx110 BOOST conical offset 51mm 2022
Float damping:
MORE INFORMATION
| Steerer | Tapered 1”1/8-1.5” |
| Front axle | Boost 15 x 110 mm |
| Lock | On the crown |
| Width | 36mm |
| Fork Caliper Mount | Post Mount (PM) |
| Offset (mm) | 51 |
